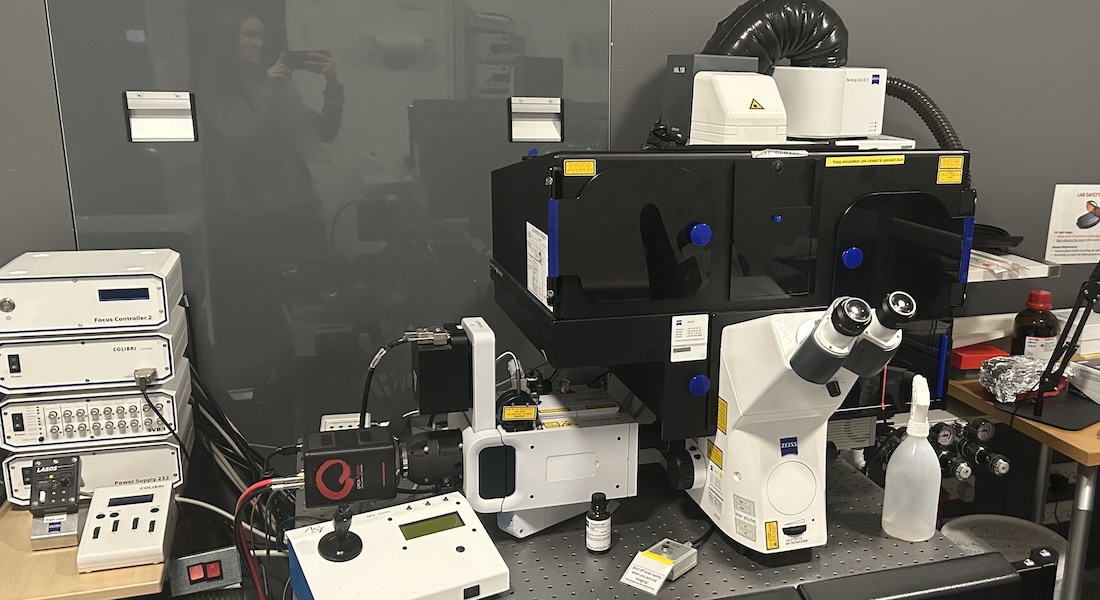

Zeiss CellObserver Spinning Disk
Spinning disc microscopy is ideal for fast confocal imaging. It is especially useful when imaging fast processes in live cells, for time lapses in 3D or recording large stacks, taking advantage of a new-generation sCMOS camera (Orca Flash 4.0 Fusion by Hamamatsu).
The Cell Observer is also equipped with an advanced Widefield module. By combining fast switching LEDs ranging from UV (365 nm) to red (590 nm) with a sCMOS camera (Orca Flash 4.0 LT by Hamamatsu) sensitive, gentle live cell imaging is possible.
Specifications
| Imaging |
Spinning disk confocal microscope (CSU-X1) Orca Flash 4.0 LT sCMOS camera |
| Detectors |
For Yokogawa spinning disc: Hamamatsu Orca Fusion For Widefield: Hamamatsu Orca Flash 4.0 LT |
| Detection | From 405nm to 750nm |
| Stand |
INVERTED Zeiss Axio Observer Z1 |
| Stage | Piezo motorized stage |
| Software | Zeiss Zen Blue 2012 |
| Add. features |
DefiniteFocus.2 for focus drift control Incubator for live cell imaging: - Temperature: from Room temperature up to 40C - Gas control: CO2, O2, N2 |
Objectives
| Objective | Mag. / NA | Medium | Contrast | Working Distance |
| EC Plan-Neofluar | 10x / 0.3 | Air | Ph1 | 5.2 mm |
| Plan-Apochromat | 20x / 0.8 | Air | - | 2.55 mm |
| LD Plan Neofluar | 40x / 0.6 | Air | - | Collar |
| C Apochromat | 40x / 1.2 | Water | - | Collar |
| C Apochromat | 63x / 1.2 | Water | - | Collar |
| Alpha Plan-Apochromat | 100x / 1.46 | Oil | DIC | 0.17 mm |
Light Sources
| Lasers | Type | Some dyes and use |
| 405nm | Diode | DAPI, Hoechst, ... |
| 458nm | Argon | CFP |
| 488nm | Argon | GFP, AlexaFluor488, Cy2 |
| 514nm | Argon | YFP |
| 561nm | HeNe | RFPs, AlexaFluor568 |
| 635nm | HeNe | DRACQ5, Cy5, AlexaFluor648 |
|
Collibri LED Illumination |
||
| 365nm | LED | Dapi, Hoechst,... |
| 470nm | LED | GFP, AlexaFluor488, Cy2 |
| 567nm | LED | AlexaFluor568, Texas red... |
| 625nm | LED | Alexa647, Cy5 |
Emission filter cubes for Spinning disk
| Wavelength | Fluorochromes |
| BP450/50 | Dapi, Hoechst, AlexaFluor405... |
| BP485/30 | CFP, ... |
| BP525/50 | GFP, FITC, YFP... |
| BP562/45 | Cy3, TRITC, AlexaFluor555, ... |
| BP629/62 | TexasRed, AlexaFluor633, ... |
| BP690/50 | Cy5, Cy5.5, ... |
|
Possibility to exchange filterson the top camera (MRm Spinning Disc) FILTER CUBES for Mercury lamp (HXP120) |
|
| Fluorochrome | Excitation | Dichroic | Emission | Filter No |
| Blue | SP365 | FT395 | BP420-470 | 49 |
| Green | BP470/40 | FT495 | BP525/50 | 38HE |
| Red | BP550/25 (HE) | FT570 | BP605/70 | |
| Blue/Green/Red | BP 370/40 (HE) BP 474/28 (HE) BP 585/35 (HE) |
TFT 395 +495 +610 (HE) |
TBP 425 |
|
| Cyan/Green/Red | TBP 406 + 489 + 561 (HE) |
TFT 427 + 503 + 578 (HE) |
TBP 459 + 525 + 608 (HE) |
Applications
- Live cell imaging
- Spinning disk - fast dynamic processes
