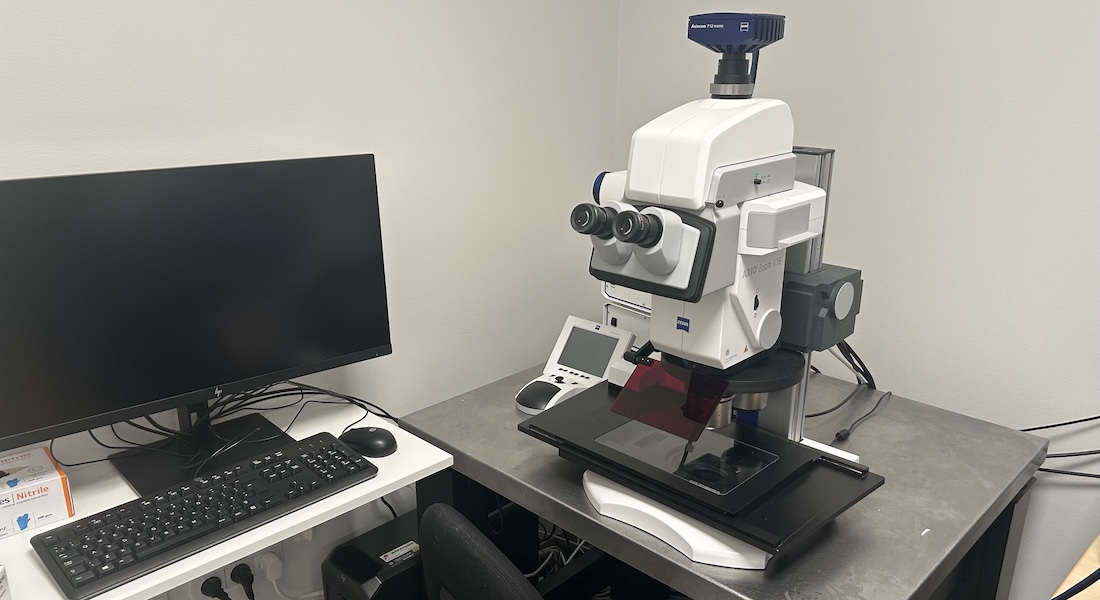

AxioZoom.V16 with Apotome
The on-axis zoom microscope Axio Zoom.V16 delivers both high resolution with a Zeiss Axiocam 712 mono camera and a zoom range of 16x. Zoom seamlessly from overview to the smallest details - with a large free working distance. Quickly and easily stitch large tile-images. Moreover, the Apotome.2 module enables for optical sectioning. This structured illumination technique enables imaging thicker samples without excessive out-of-focus blur.
Specifications
|
Imaging |
Stereomicroscope |
|
Detectors |
AxioCam 712 mono |
|
Microscope |
AxioZoom.V16 |
|
Add. Features |
Motorized XYZ Apotome for optical sectioning |
|
Software |
Zeiss Zen Blue 3.1 |
|
Illumination |
HXP200 for Fluorescence Transillumination from the base |
|
Objectives |
PlanNeoFluar Z 1x / 0.25 56 mm FWD PlanNeoFluarZ 2.3x / 0.57 10,6 mm FWD |
|
Zoom |
Up to 16x |
FILTER CUBES for Mercury lamp (HXP120)
|
Fluorochrome |
Excitation |
Dichroic |
Emission |
Filter No |
|
Blue |
G365 |
FT 395 |
445/50 |
|
|
Green |
BP470/40 (HE) |
FT 495 (HE) |
BP525/50 (HE) |
|
|
Red |
BP575/25 (HE) |
FT 590 (HE) |
BP629/62 (HE) |
Applications
- Stereomicroscopy
- Brightfield and darkfield microscopy
- UV, red and green fluorescence
- Digital image capture
- Time lapse, large tile imaging
- Z-stacks
