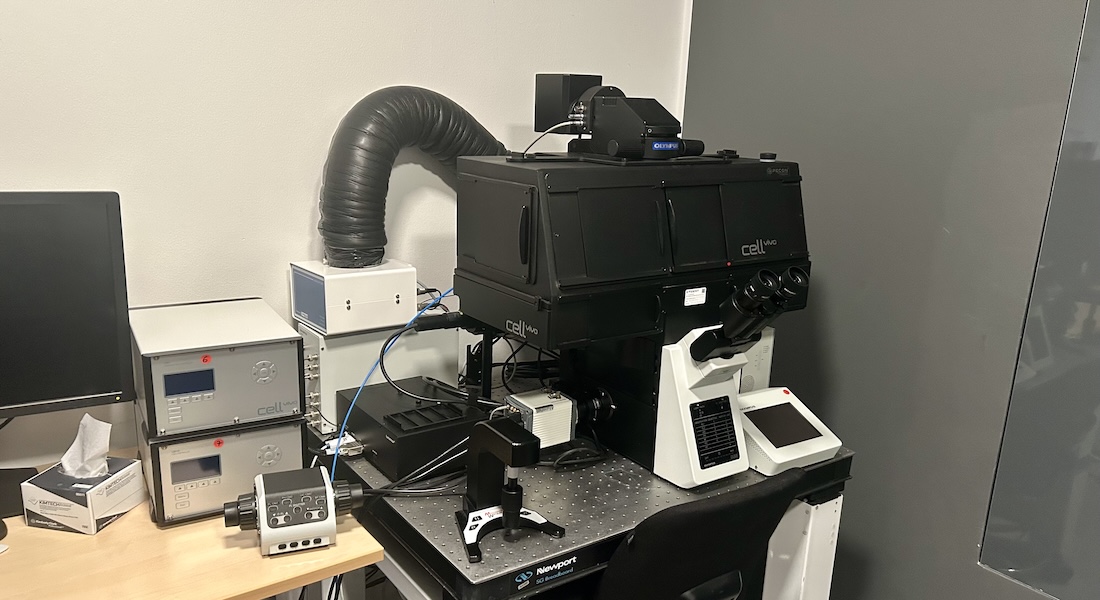

Olympus ScanR2 Widefield
Inverted widefield microscope designed for high-throughput content screening. Features fully automated image acquisition and data analysis. Equipped with hardware autofocusing, motorized focus and automatic XY stage.
Specifications
|
Imaging |
Fluorescence, Widefield Microscope, Brightfield |
|
Detectors |
Camera (Hamamatsu Orca flash 4) Chip: Effective number of pixels: 2048x2048 Pixel Size: 6.5μm |
|
Stand |
Inverted |
|
Stage |
Motorized in XYZ |
|
Software |
ScanR Acquisition |
|
Add. features |
Temperature and CO2 Control |
Objectives
|
Objective |
Mag. / NA |
Medium |
WD |
|
UPLSAPO 10x0.4 ∞/0.17/FN 26.5 |
10X/0.4 |
Air |
3.1 |
|
UPLSAPO 20x0.75 ∞/0.17/FN26.5 |
20X/0.75 |
Air |
0.6 |
|
UPLSAPO 40x0.95 ∞/CORR 0.11-0.23/FN 26.5 |
40X/0.85 |
Air |
0.18 |
|
UPLSAPO 4x0.16 ∞/0.17/FN 26.5 |
4x/0.16 |
Air |
13 |
|
UPlanFLN 20x0.5 ∞/0.17/FN 26.5 |
20x/0.5 |
Air |
2.1 |
Light Sources
Lumencor Spectra LED´s
Filter Cubes
|
Fluorochrome |
Excitation |
Dichroic |
Emission |
|
DAPI + TRITC |
395/25 |
430 |
462/36 |
|
DAPI + TxRed |
395/25 |
440 |
462/40 |
|
CFP |
440/20 |
458 |
482/32 |
|
FITC |
470/24 |
497 |
537/70 |
|
YFP |
510/25 |
525 |
544/23 |
|
TRITC |
550/15 |
565 |
590/40 |
|
TxRed |
575/25 |
598 |
631/64 |
|
Cy5 |
620/30 |
655 |
694/70 |
Applications
- Fluorescence multichannel imaging
- high throughput screening
- high content screening
