LSM 980 & Airyscan2

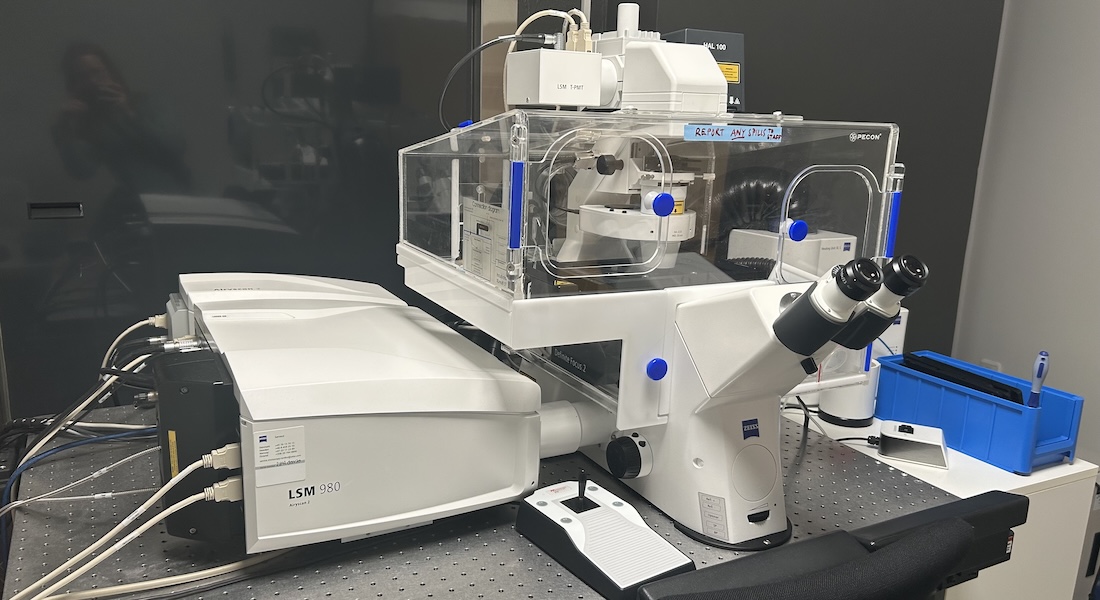

The Zeiss LSM980 system incarnates the newest generation of laser scanning confocal microscopes. Mounted on an inverted microscope for full flexibility and compatibility with live cell imaging (boasting Definite Focus 2 for focal stabilization and cell incubation chamber), it is also amenable for standard fixed sample imaging.
The system incorporates the 34-channel Quasar detector common to other Zeiss LSMs in the facility, ideal for spectral unmixing. Moreover, the system features the Airyscan2 detector. This is an array of 32 single GaAsP detectors arranged as a rosette, which allows for super-resolution performance (down to 140 nm), but which can alternatively be used as a slit scanning confocal, increasing scanning speed by 8x.
Additionally, the system incorporates a Colibri7 LED light source and an Axiocam 705 mono camera for widefield imaging.
Specifications
|
Imaging |
Point, Array and Slit scanning confocal. Widefield imaging. |
|
Detectors |
Quasar detector: 32-channels GaAsP detector, 2 PMTs for Fluorescence (PMT2 is cooled) Airyscan2 detector: 32-channel GaAsP detector rosette
Axiocam 705 mono camera for widefield |
|
Detection range |
From 405nm to 750nm |
|
Stand |
INVERTED Zeiss AxioObserver 7 |
|
Stage |
Motorized in XYZ |
|
Software |
Zeiss Zen Blue 3 |
|
Add. features |
Incubator (temperature + gas control) for live cell imaging Definite Focus 2 DIC optics |
Objectives
|
Objective |
Mag. / NA |
Medium |
Contrast |
Working Distance |
|
Plan-Apochromat |
Air |
DIC II |
2,1 mm |
|
|
Plan-Apochromat LD LCI Plan-Apo C-Apochromat |
Air Water, silicone, glycerine, oil Water |
DIC II DIC II DIC II/III |
0,55 mm 0,57 mm 0,28 mm |
|
|
Plan-Apochromat |
Oil |
DIC II HC |
0,19 mm |
Light Sources
|
Lasers |
Type and Power |
Some dyes and use |
|
405 nm |
Diode, 30 mW |
DAPI, Hoechst, AlexaFluor405, DyLight405 |
|
488 nm |
Diode, 30 mW |
GFP, AlexaFluor488, Cy2 |
|
561 nm |
DPSS, 25 mW |
RFPs, AlexaFluor568, Cy3 |
|
594 nm |
DPSS, 8 mW |
mCherry, AlexaFluor594 |
|
639 nm |
Diode, 25 mW |
DRACQ5, Cy5, AlexaFluor647 |
|
Diodes Colibri7 Type R(G/Y)B-UV |
|
Airyscan Beamsplitters
- Emission filter BP 420-480 + BP 495-550
- BP 420-480 + BP 570-630
- Emission filter BP 420-500 + LP 605
- Emission filter BP 465-505 + BP 525-585
- Emission filter BP 495-550 + BP 570-630
- Emission filter BP 495-560 - LP 660
- EF BP 570-620 + LP 660
FILTER CUBES for Colibri7 LED light source
|
Fluorochrome |
Excitation |
Dichroic |
Emission |
Filter No |
|
Blue |
BP390/40 |
FT420 |
BP450/40 |
|
|
Green |
BP470/40 |
FT495 |
BP525/50 |
|
|
Red
mCherry
Far Red |
BP545/25
BP587/25 HE
BP640/30 |
FT570
FT605 HE
FT660 |
BP605/70
BP674/70 HE
BP 690/50 |
|
Applications
- Optical z-sectioning of living specimens and fixed samples,
- FRET/FRAP experiments,
- 3D-super-resolution imaging,
- Fast confocal imaging,
- Photoactivation and photoconversion experiments,
- Spectral imaging and advanced unmixing of overlapping emission spectra,
- Overlay of multiple fluorescence images with transmitted light images.
- Advanced, long term widefield live cell imaging
