LSM 880 with Airyscan

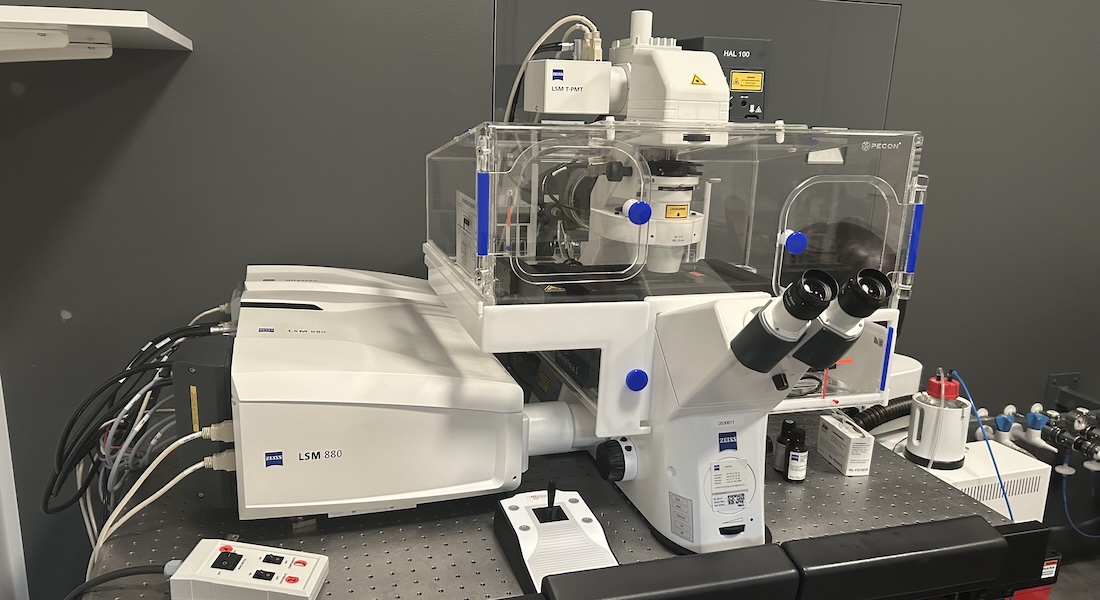

The Zeiss LSM 880 Airyscan is an inverted confocal microscope designed for high-resolution imaging of fixed and live-cell samples. It features a motorized AxioObserver Z1 stand with Definite Focus 1 for focus stabilization, a motorized XY stage for precise positioning and tiling, and a fully enclosed chamber for environmental control during time-lapse experiments.
The system supports conventional confocal imaging with a cooled GaAsP PMT spectral detector that captures 34-channel fluorescence emission spectra, enabling pixel-by-pixel identification of fluorophores by their emission fingerprints. This is especially useful for resolving overlapping signals, analyzing spectral shifts, and quantifying probes that change emission upon target binding.
For super-resolution imaging, the 32-channel Airyscan detector improves spatial resolution and signal-to-noise ratio.
Specifications
|
Imaging |
Point Scanning confocal with Airyscan detection |
|
Detectors |
- 2 conventional PMTs, Ch1 and Ch2 - highly sensitive multiarray 32PMT GaAsP detector for fast spectral scanning, ChS1 - transmission PMT - 1 Airyscan Detector (high resolution) |
|
Detection range |
From 405nm to 750nm |
|
Stand |
Inverted Zeiss AxioObserver.Z1 |
|
Stage |
Motorized in XYZ |
|
Software |
Zeiss Zen Black |
|
Add. features |
Incubation box XL Multi S1 and CO2 Control and Temperature Control (1 in the Box and 1 on the stage) |
Objectives
|
Objectives |
Mag. / NA |
Medium |
Contrast |
WD |
|
EC Plan-Neofluar |
10x/0.3 |
Air |
5.2 |
|
|
Plan-Apochromat |
20x/0.8 |
Air |
0.55 |
|
|
Plan-Apochromat |
40x/1.3 |
Oil |
DIC |
0.21 |
|
alpha Plan-Apochromat |
100x/1.46 |
Oil |
DIC |
0.11 |
|
C-Apochromat |
63x/1.2 |
Water |
0.28 |
Light Sources
Epi: HXP 120
|
Lasers |
Type and Power |
Some dyes and use |
|
405 nm |
Diode, 30 mW |
DAPI, Hoechst, AlexaFluor405, DyLight405 |
|
488 nm |
Argon, 25 mW |
GFP, AlexaFluor488, Cy2 |
|
561 nm |
DPSS, 10 mW |
RFPs, AlexaFluor568, Cy3 |
|
594 nm |
HeNe, 2 mW |
mCherry, AlexaFluor594 |
|
633 nm |
HeNe, 5 mW |
DRACQ5, Cy5, AlexaFluor647 |
Main Beam Splitter
- MBS 458
- MBS 458/514
- MBS 458/561
- MBS 458/514/594
- MBS 488
- MBS 488/561
- MBS 488/594
- MBS 488/561/633
- MBS T80/R20
- Plate
Dichroic beam splitter
- Mirror
- SBS BP 420
- 460 +LP500
- SBS LP 525
- SBS LP 570
- SBS LP 660
- SBS LP 460
- SBS SP 615
- Plate
Airyscan Emission Filter
- BP 420-480 + BP 495-550
- BP 495-550 + LP 570
- BP 570-620 + LP 645
- BP 420-480 + BP 495-620
- BP 465-505 + LP 525
- BP 555-620 + LP 645
Filter Cubes for Mercury Lamp HXP 120
|
Fluorochrome |
Excitation |
Dichroic |
Emission |
Filter No |
|
Blue |
G 365 |
FT395 |
BP445/50 |
49 |
|
Green |
BP470/40 |
FT495 |
BP525/50 |
38 HE |
|
Green |
BP500/25 DMR25 |
FT515 |
BP535/30 DMR25 |
46 HE |
|
Red |
BP550/25 |
FT570 |
BP607/70 |
43 HE |
Applications
- Optical z-sectioning of living specimens and fixed samples
- 3D-super-resolution imaging
- Fast confocal imaging
- Live-cell imaging
- Spectral imaging and advanced unmixing of overlapping emission spectra,
- Overlay of multiple fluorescence images with transmitted light images.
