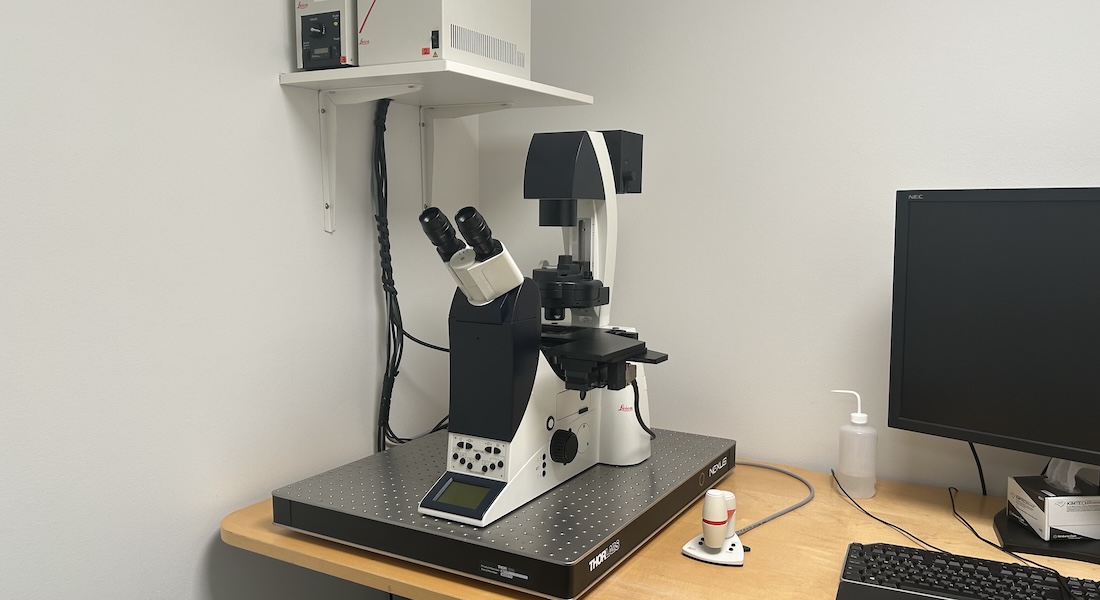

Leica AF6000 Widefield
Simple widefield fluorescence microscope for general fluorescence imaging applications.
Specifications
|
Imaging |
Widefield Fluorescence, Brightfield |
|
Detectors |
Leica DFC 345 FX Monochrome CCD Camera Number of pixels: 1600x1200 Pixel Size: 4.4μm x 4.4μm |
|
Stand |
Inverted |
|
Stage |
Motorized stage |
|
Software |
LAS X |
|
Illumination |
HXP 120 W |
Objectives
|
Objective |
Mag./ NA |
Medium |
WD |
|
10x0.40 Dry HC PL APO11506284 |
10X/0.4 |
Air |
2.2 |
|
20x0.70 Dry HC PL APO 11506166 |
20X/0.7 |
Air |
0.59 |
|
40x0.85 Dry CORR HC PL APO11506294 |
40X/0.85 |
Air |
0.21 |
|
63x1.40 OIL HC PL APO 11506349 |
63X/1.4 |
Oil |
0.14 |
|
100x1.40 OIL HCX PL APO |
100X/1.4 |
Oil |
0.13 |
Filter Cubes for HXP 120 W
|
Fluorochrome |
Excitation |
Dichroic |
Emission |
|
DAPI |
BP 350/50 |
LP 400 |
BP 460/50 |
|
Y5 (Far red) |
BP 620/60 |
660 |
BP 700/75 |
|
GFP (green) |
BP 470(40 |
495 |
BP 525/50 |
|
TXR (red) |
BP 560/40 |
LP 585 |
BP 630/75 |
Applications
- Fluorescence imaging
