3i Cleared Tissue LightSheet (CTLS)

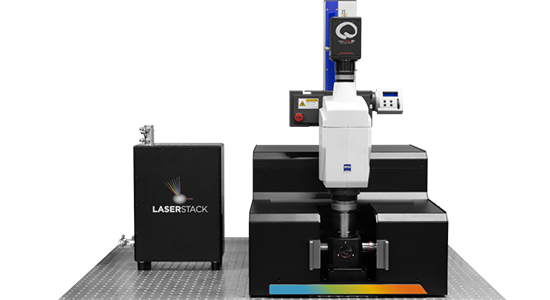

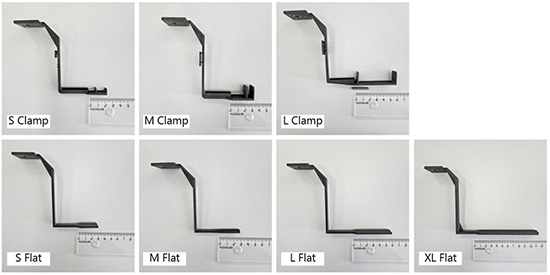

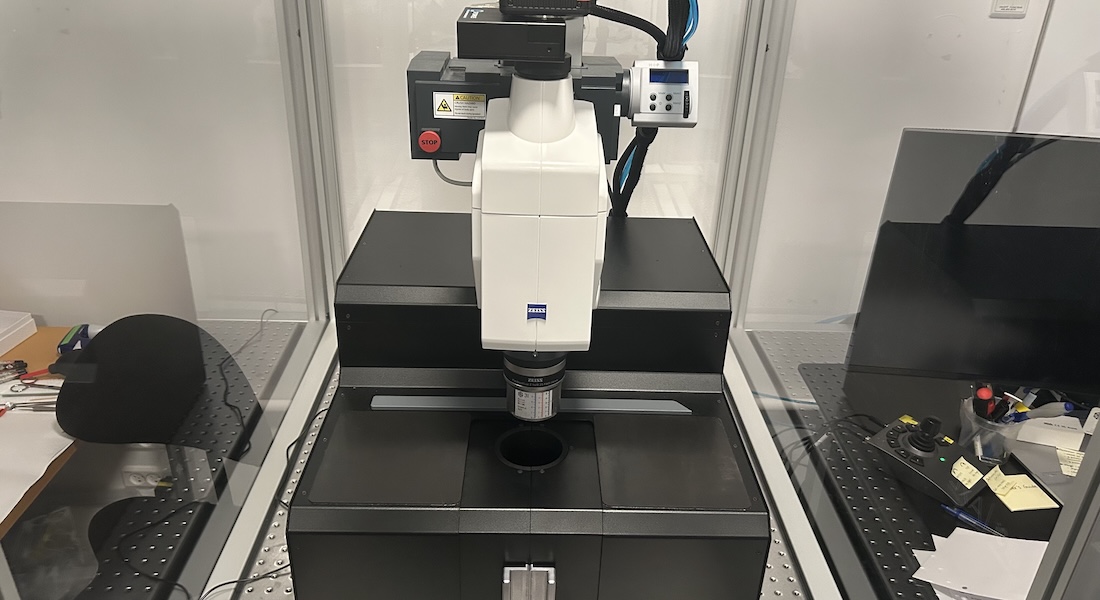

The 3i Cleared Tissue LightSheet (CTLS) microscope is a light-sheet microscope for imaging medium to large or multiple cleared samples. CFIM provides access to various choices of sample chambers, sample holders, detection objectives, magnification and resolution settings, allowing for the customization of imaging setup to suit specific research needs. The 3i CTLS is suitable for imaging cleared samples such as whole organs from mice, mouse spinal cord, rat brain, and sections from larger animals at cellular or subcellular resolution.

For inquiries about using the 3i CTLS microscope or discussing potential applications, please contact Jana Harizanova [j.harizanova@sund.ku.dk] and Sunny Dai [keqing.sunny.dai@sund.ku.dk].

Specifications

Imaging

  • Dual-side illumination.
  • Compatible for imaging in media with refractive index ranging from 1.33 to 1.56.
  • Multiple light-sheets generated digitally by spatial light modulator (SLM) for shadow reduction. High speed galvo scanning and light-sheet tiling options for homogenous resolution and illumination across the sample.
  • Fast pre-scan function for locating the sample(s) and defining the imaging range.

Light Sources

LaserStack system with a selection of solid state diode lasers coupled to the microscope via fiber optic.

Wavelength

Power

488 nm

150 mW

561 nm

150 mW

637 nm

140 mW

785 nm

300 mW

Detector

Hamamatsu ORCA-Fusion BT C15440 sCMOS camera with pixel number 2304×2304, pixel size 6.5µm, 95% QE.

Software

SlideBook software from 3i for acquisition, processing, and 3D visualization.

Detection Objectives

Aberration correction

Magnification

Numerical Aperture (NA)

Working Distance (WD)

Plan Fluar

1.0x

0.25

56 mm

Plan Apochromat

1.5x

0.37

30 mm

Plan Fluar

2.3x

0.57

10 mm

Illumination Objectives

Magnification

Numerical Aperture

Light sheet thickness (FWHM)

Light sheet length

5x

0.14

2.4 - 21 µm

0.5 - 4 mm

10x

0.28

1.7 - 16 µm

0.5 - 2 mm
